TTY Cards

A completed w076x without handles. w076x.jpg

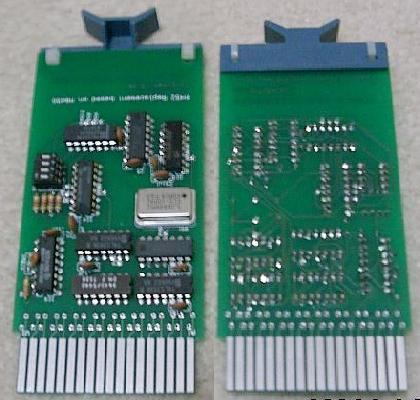

A completed m452x with handle added. m452x.jpg
Shows the suggested way to attach the handle, too.


These are my replacements for the DEC W076 and M452 modules.

The W076x provides connection from a PDP-8/i or PDP-8/L to an RS-232 or a current loop device.

The M452x provides easily selectable baud rates up to 19200.

I am making these cards available to help hobbyists with PDP-8/I and PDP-8/L computers get them interfaced to modern PCs or terminals.

Click here to download thank you and disclaimer file.

Click here to download the M452X schematic.

Click here to download M452X documentation.

Click here to download the M452x parts list.

Click here to download the W076X schematic.

Click here to download W076X documentation.
